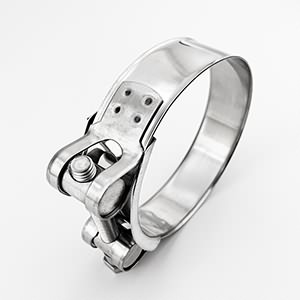

Heavy Duty Hose Clamp

Item Number: 814
Size: Φ17-Φ252
Material: AISI304 / AISI316
Product Description: Heavy duty hose clamp also known as fuel injection clamps, ensure uniform sealing pressure. These clamps close with a nut and bolt fastener. They have a solid band with rolled edges to prevent damage to the hose.

Product Specifications

Size(ΦA)	T	W	M	L
mm	mm	mm	mm	mm
17-19	0.6	18	M5	40
20-22	0.6	18	M5	40
23-25	0.6	18	M5	40
26-28	0.6	18	M5	40
29-31	0.6	20	M6	50
32-35	0.6	20	M6	50
36-39	0.6	20	M6	50
40-43	0.6	20	M6	50
44-47	0.8	22	M6	60
48-51	0.8	22	M6	60
52-55	0.8	22	M6	60
56-59	0.8	22	M6	60
60-63	0.8	22	M6	60
64-67	0.8	22	M6	60
68-73	0.8	24	M8	70
74-79	0.8	24	M8	70
80-85	0.8	24	M8	70
86-91	0.8	24	M8	70
92-97	0.8	24	M8	70
98-103	0.8	24	M8	80
104-112	0.8	24	M8	80
113-121	0.8	24	M8	80
122-130	0.8	24	M8	80
131-139	1	24	M10	90
140-148	1	24	M10	90
149-161	1	24	M10	90
162-174	1	24	M10	90
175-187	1	24	M10	100
188-200	1	24	M10	100
201-213	1	24	M10	100
214-226	1	24	M10	100
227-239	1	24	M10	100
240-252	1	24	M10	100
