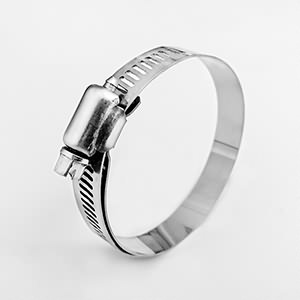

Hose Clamp

Item Number: 813
Size: Φ6-Φ900
Material: AISI304 / AISI316
Product Description: Hose clamp is used in a variety of automotive and industrial applications to secure hose and tube connections to ensure a tight fit and prevent fluid and air from leaking. They have housed, helical-threaded screw that engages with the slots in the band and tightens the band as the screw turns. They are non-permanent and remove in the same way they are installed, easing maintenance.

Product Specifications

Size(ΦD)	A	B
mm	mm	mm
6-12	0.6	8
10-16	0.6	8
13-19	0.6	8
16-25	0.6	8
19-29	0.6	8
13-23	0.6	12
14-27	0.6	12
18-32	0.6	12
21-38	0.6	12
21-44	0.6	12
27-51	0.6	12
33-57	0.6	12
40-63	0.6	12
46-70	0.6	12
52-76	0.6	12
59-82	0.6	12
65-89	0.6	12
72-95	0.6	12
78-101	0.6	12
84-108	0.6	12
91-114	0.6	12
105-127	0.6	12
118-140	0.6	12
130-152	0.6	12
141-165	0.6	12
155-178	0.6	12
175-197	0.6	12
194-216	0.6	12
213-235	0.6	12
232-254	0.6	12
251-273	0.6	12
270-292	0.6	12
289-311	0.6	12
300-400	0.6	12
400-500	0.6	12
150-250	0.6	12
250-350	0.6	12
350-450	0.6	12
450-550	0.6	12
500-600	0.6	12
600-700	0.6	12
700-800	0.6	12
800-900	0.6	12
