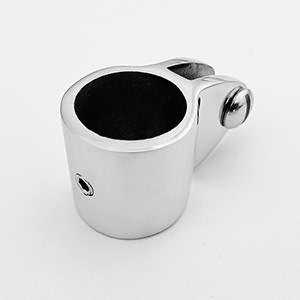

Top Slide

Top Slide
  • Item Number: 850
  • Size: Φ19-Φ32
  • Material: AISI316
  • Product Description: Top slide is used as a part of a bimini top system and attach an eye end securely to support tubing. These investment cast 316 stainless steel fittings are durable and corrosion resistant. Set screw on back allows you to quickly and easily adjust the placement of these slides where they are needed.
Product Specifications
Top Slide Drawing
Size(TubeΦ) A B D E L
mm mm mm mm mm mm
19 19.5 25 6.5 7 55
20 20.5 26.5 6.5 7 55
22 22.5 28.8 6.5 7 58
25 25.8 31.8 6.5 7 56
30 30.8 37.5 6.5 7.2 61
32 32.8 39.6 6.5 7.2 61
