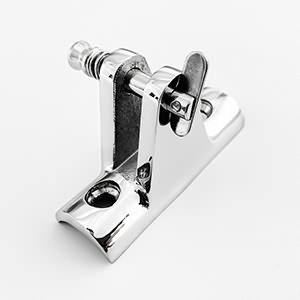

Concave Deck Hinge with Removable Pin
- Item Number: 848
- Size: Φ22-Φ25
- Material: AISI316
- Product Description: Concave deck hinge with removable pin is designed to mount horizontally and attach an eye end in Bimini top applications. Constructed of corrosion resistant, investment cast 316 stainless steel. These concave hinges are designed to rail mount on tubing. Features a spring loaded quick-release pin for easy top removal.

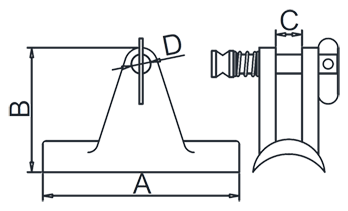

Product Specifications
Size(TubeΦ) | A | B | C | D |
---|---|---|---|---|
mm | mm | mm | mm | mm |
22 | 60 | 37.6 | 19 | 6 |
25 | 56.5 | 36 | 15.2 | 6 |
