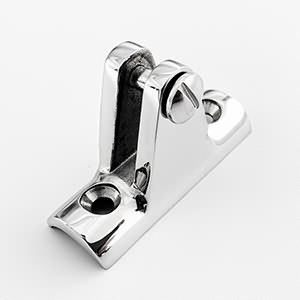

Concave Deck Hinge
- Item Number: 847
- Size: Φ22-Φ25
- Material: AISI316
- Product Description: Concave deck hinge is designed to mount horizontally and attach an eye end in Bimini top applications. Constructed of corrosion resistant, investment cast 316 stainless steel. These concave hinges are designed to rail mount on tubing.
Product Specifications

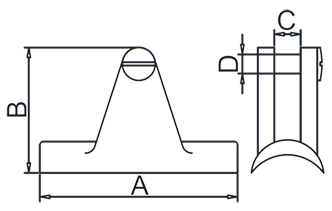

Size(TubeΦ) | A | B | C | D |
---|---|---|---|---|
mm | mm | mm | mm | mm |
22 | 60 | 37.8 | 18.6 | 6 |
25 | 56.5 | 36 | 15.3 | 6.2 |
